| Control Jacquard by USB Devices (Memory Drive, Floppy Drive etc.) |
|
Select Jacquard Needle directly with USB Devices (Memory Drive, Floppy Drive etc.) which made by Design System.
It is unnecessary to make up Punching Card for Mechanical Jacquard. Be able to begin weaving immediately if there is Jacquard Data.
It is the operatable to exchange Mechanical Jacquard for Our Products.
|
|
Jacquard Needle Selection Box：SB
Your mechanical Jacquards immediately turn into electro-controlled looms by
simpley attaching the SB series. The SB series enables the production of a large
variety of items in a small lot, cuts down lead time and simplifies factory management which
contributes to ouverall rationalization of production as well as a decrease in costs.
|
|
|
 |  Epoch-making new mechanism
High-speed and stable operations (Max.:400r.p.m. over) is ensured by the adoption of the "Bimorph Actuator" in place of conventional solenoids.
Reduction in operation costs
A system with no solenoids effectively cuts operations costs, decreases the 1/3 or less of the electric power consumption
to reduce the running costs.
|
|
 | Rationalization of factory operation
You are released from time-consuming card punching,
changing of a card on a loom for a new one, and from all the troubles that result form damaged cards. Thus, your factory will become streamlined and well-organized.
Suitable for multiple requirements
One Controller set is capable of controlling a maximum of 15 jacquard looms. So the large-size Jacquard patterns are prevailing.This sysstem is best suited for the production of carpets,curtains, warp-knit laces, etc.
|
|
 | Large capacity controller
A hard-disk and a memory with a large capacity allows storing of a large number of Jacquard patterns.Layout drawing and rearrangement of various patterns and setting of repeat parameters can be easily worked out on a CRT monitor.
Enhanced efficiency in combination with CAD
An on-line system between the CAD and the looms can be established by combining this system with a SKY-HR/V(for Jacquard woven fabrics) or a SUPER-LECS3(for Raschel lace) - our brand new pattern systems.
|
|
|

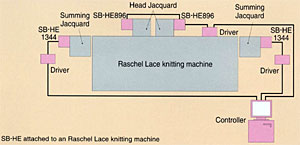

 |  Attachable to any type of Jacquard loom for endless paper.
Also attachable to High Speed Jacquards with 400 r.p.m.over.
Exhibits its best performance especially
when attached to looms contained more than one jacquard card.
(for carpets, curtains and raschel lace)
Relief from trouble related to punched cards allows increase of
the running speed of looms by 10 to 15 r.p.m.
The running stroke of looms can be adjusted shorter
to reduce noises from the looms considerably.
|
|
|
Verdol Antares 1344
Staubli 896 x 2  |
|
SB-N for Nishijin / Cut Paper
| |
 | Suitable for cut paper Jacquards.
Attachable to Jacquards with Nishijin Pitch(5.13mm) with
any number of needles(400/600/900/1200/1320)
Realized an affordable price by adopting
the one-head-one controller type.
For easier maintenance, removal and opening / shutting of cassettes
can be done with a one-touch action.
The Bimorph Actuator avoids malfunctioning and
ensures stable operation of the system for long time.
|
|
|
 | SB-V is the only system in the world that is attachable
to Jacquards with the Vincenzi pitch (4mm).
Widely used throughtout the world,
especially for Jacquards weaving and Wilton carpets.
Conveniently designed for one controller to control
more than one head.
Best suited for piece types of carpet
as horizontal patterns can be edited.
In coordination with CAD, weaving of specially ordered carpets
with full repeat patterns can be performed immediately.
|
|
Reliable Maintenance / Supports
| |
Maintenance is the exchanging SB Cassette only, moreover it's easy to exhange with one touch action.
There are favorably received from many customer in Japan and out of Japan.
It is possible to introduce SB Series with believed.
| |
| Model |
Type (Pitch) |
Needle Number |
Size (mm) |
Weight (Kg) |
| SB-HE896 |
Endless (5.2mm) |
896 |
352×178×168 |
5.2 |
| SB-HE1344 |
↑ |
1344 |
503×168×178 |
7.0 |
| SB-HE1792 |
↑ |
1792 |
654×178×168 |
8.8 |
| SB-HN400 |
Nishijin (5.13mm) |
436 |
110×365×110 |
13.0 |
| SB-HN600 |
↑ |
660 |
110×365×110 |
13.0 |
| SB-HN900 |
↑ |
1016 |
110×510×110 |
19.0 |
| SB-HN1200 |
↑ |
1256 |
110×665×110 |
24.0 |
| SB-V880 |
Vincenzi (4.0mm) |
880 |
350×306×220 |
33.0 |
| SB-V1320 |
↑ |
1320 |
350×422×220 |
42.0 |
| SB-V1760 |
↑ |
1760 |
350×566×220 |
57.0 |
|
|
|
|
|
